bullet01 This form allows you to create a new state or edit an old one.



bullet01 Setup State : Main Menu> Setup Accounts> Setup States.



Toggle Icon Minus 17Main Menu



ph6

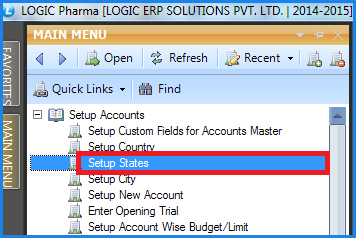

                                        Fig 1. Main Menu



 Contents:



bullet-arrow2   Creating State



bullet-arrow2   Buttons



Creating State:



With each state you can provide a Country Name. Countries can be setup through Setup Country. If you do not require country you can skip the country column, the value will automatically become NIL.



bullet01 State Name is unique i.e. if a same state name exists in two countries you have to provide different names in the State Name column.



bullet01 State Name :  Enter the state name which you want to add the Grid.Press enter to save the state  name & to move the next column in the Grid.It is mandatory to enter state name.



bullet01 State Short Name : Enter the state short name  which you want to add. Press enter to save the state short name & to move to  the next column in the Grid. It is mandatory to enter state short name.



bullet01 Country : Select a country from the list.



  ph7

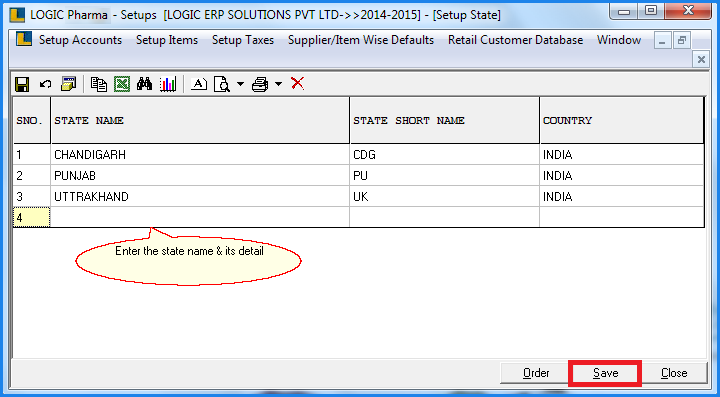

                                                                              Fig 2. Setup State



notes

1) To save the data entered by the user, user have to press enter button and the cursor should be on next line in the grid.

2) Once the state is created the user cannot delete the state. The user can only modify the record. To do this make the changes and click on Save button or press Alt+S to save the changes.


Buttons:



There are three Buttons available in the bottom of the Grid Order button, Save Button and Close Button.



bullet01 Order Button : Click on order button> List to order Displayed. When click on order button the caption changes into Set in alphabetical order. Click on this button arranges the list into alphabetical order.



    ph8

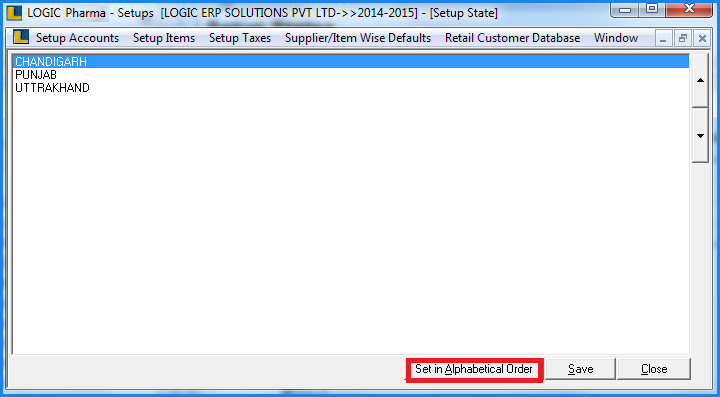

                                                                      Fig 3. Setup State



bullet01 Save Button : Click  to save the changes made by user.



bullet01 Close Button : Click to exit.
