Bank Payments

Previous pageReturn to chapter overviewNext page
Show/Hide Hidden Text



bullet01 Payment Vouchers can be created using Bank as the mode of payment. Whenever the payment is made in Cheque or in D.D. then Bank Payment is generated. At least one ledger account must be debited and bank account must be credited, bank credit balance increases.



bullet01 Bank Payments: Main Menu > Vouchers > Bank Payments.



Toggle Icon Minus 17Main Menu



LogicAFS-371

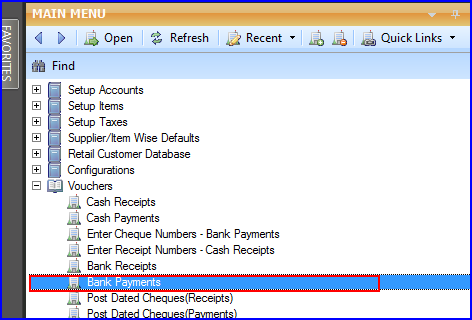

Fig 1. Main Menu






Contents



bullet-arrow2   Header Details



bullet-arrow2   Account Details



bullet-arrow2   Adjust Against Bills



bullet-arrow2   Modifying & Deleting Records






Header Details



bullet01 Configuration- Select the configuration from the list. User can also set the default configuration for bank payments using Cash/Bank Voucher Configuration form.



bullet01 Bank/Cash A/c- Select the bank account from the list. User can also set the default account using Cash / bank Voucher Configuration form.



bullet01 Current Balance- It displays the current balance of the selected bank account.



bullet01 Discount A/c- Select the discount account from the list. User can also set the default account using Cash/bank Voucher Configuration form.



bullet01 Voucher Date & No- Enter the voucher date and voucher number. The Voucher No. is set by default. The Voucher Number has the following parts-


It is BP in case of Bank Payments.

2014-> which is the Current Year.

11-> which is the Current Month.

03-> which is the Current Date.

1-> which is the voucher number that is incremented by 1 every time a new voucher is issued.

All these combine up to give the Voucher No. for example BP-2014-11-03-1.



LogicAFS-390

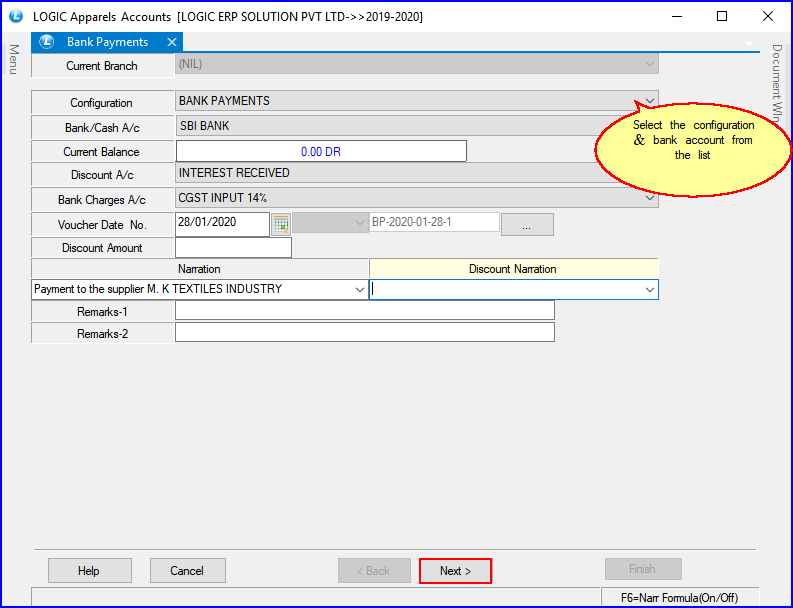

Fig 2. Bank Payments (Header Details)



Back To Top




Account Details



bullet01Click on the Next button or press Alt+X to enter the details related to the account :



bullet01 Entry Mode- Select the entry mode from the list Payment or Discount.



bullet01 Account Name- To select the account name press the space bar > Account Search List window appears select the required account and press enter. It is mandatory to select the account name.



bullet01 Amount- Enter the amount manually. It is mandatory to enter amount.



bullet01 Discount- Enter the discount manually,It is an optional column.



bullet01 DD/Cheque- Select the mode of payment whether its through cheque or Demand Draft.



bullet01 Narration- To select the narration press the space bar and select the narration from the list or narration can be carry forward as set in Cash / bank Voucher Configuration form.



bullet01 Adjust BR/BP- Press space bar and select the sale invoice against which BR/BP is adjusted, against debit and credit.



bullet01 Save- After entering the values click on Save button or press Alt+S to save the record.



LogicAFS-375

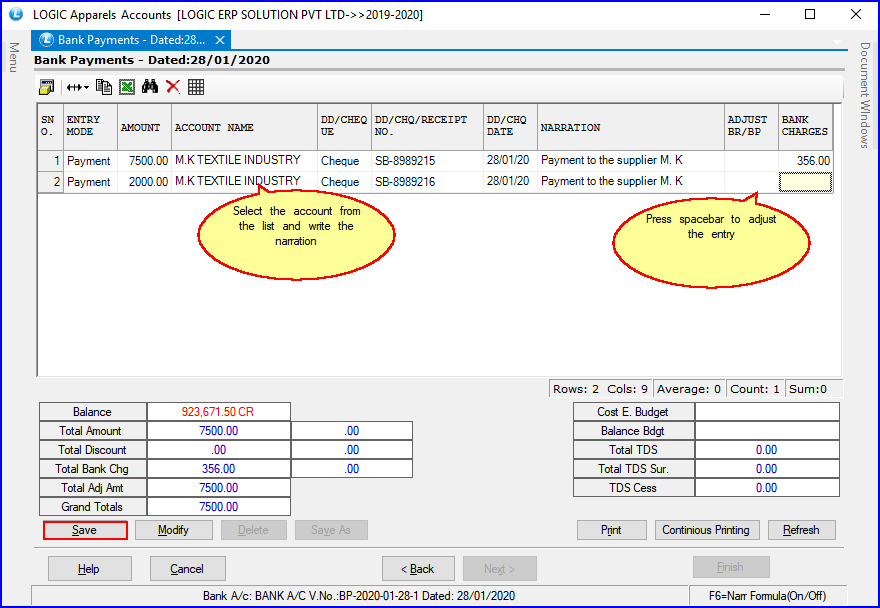

Fig 3. Bank Payments (Account Details)



Back To Top




Adjust Against Bills



bullet01 Adjust BR/BP- Press space bar and select the sale invoice against which BR/BP is adjusted, against debit and credit.



bullet01 Adjust Entry- To adjust the amount that is being received from the party with the bills of that party the user should click on Adjust Entry button or Press Alt+A. After the entry is being adjusted the user gets to know if any balance is pending or not. The Balance is displayed in the balance text box and it specifies whether the balance is Debit or Credit. CR depicts Credit and DR depicts Debit.



LogicAFS-374

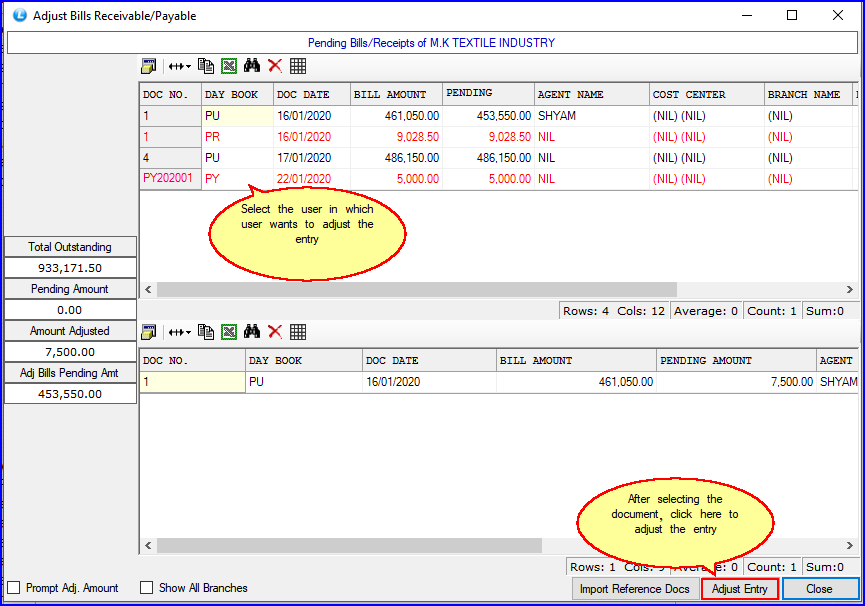

Fig 4. Adjust Bill Receivable/Payable



Back To Top




Modifying & Deleting Records



bullet01 Modify: To Modify the record in a voucher click on Modify button or Press Alt+M. A search form will open up. The form lets the user search the voucher/record on different criteria like Account Name, date range between which the voucher was issued, Amount, Narration. It will be DD/Cheque No. in case of Bank Payment. After specifying the criteria click on Search button or Press Alt+S. The voucher that met the search criteria will be displayed in the select box.



notes

If the search criteria are not specified and the user clicks on Search button then the list of all the vouchers will be displayed in the select box.



bullet-arrow2 Select the voucher that needs to be modified and then click on Modify button or Press Alt+M. The voucher with the records will be displayed. Make the necessary changes and then click on Save button or Press Alt+S to save the changes made.



bullet01 Delete: To Delete the Record in a voucher select the record to be deleted and then click on Delete Line Button or Press Alt+D. This delete button is highlighted after selecting the voucher by first searching the voucher using the Modify button.



Back To Top
