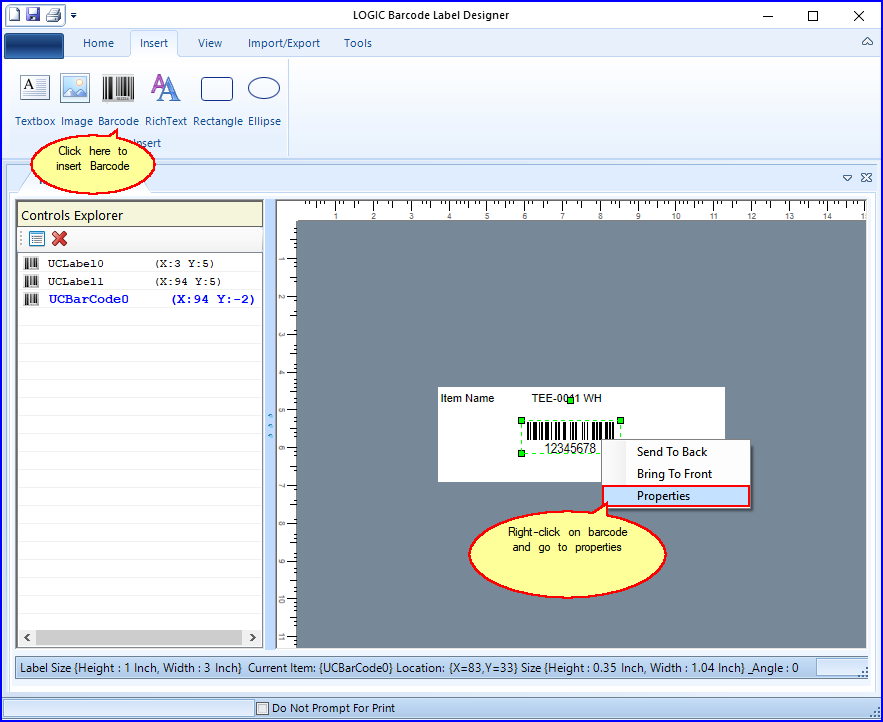

bullet01 Click the Barcode option in order to insert the barcode picture. User can resize the barcode picture and right click to set the properties from the popup menu. It is optional to insert the barcode picture.User can insert it if required. User can go to a few options to design your barcode. You can press right click on the barcode in the side bar and select the barcode properties seen in the window below.



LogicAFS-440



FIG 1. INSERT BARCODE



  Toggle Icon Minus 17 Bar Code Properties

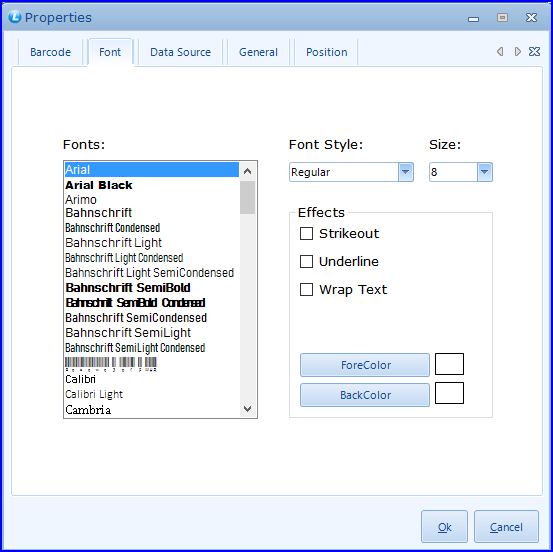

Font



bullet01 Font Option: You can set the font of your liking and its various attributes by going to the Font option in the Properties section.



bullet01 Font Style: User have a options to style the font by deciding Font Style, Size of the Text, Effects i.e Strikeout, Underline, Wrap Text etc



bullet01 Color Options: Fore Color or Back Color simply means if you want to color the whole Barcode or just the background respectively.



LogicAFS-441



FIG 2. BARCODE PROPERTIES



Back To Top


Data Source

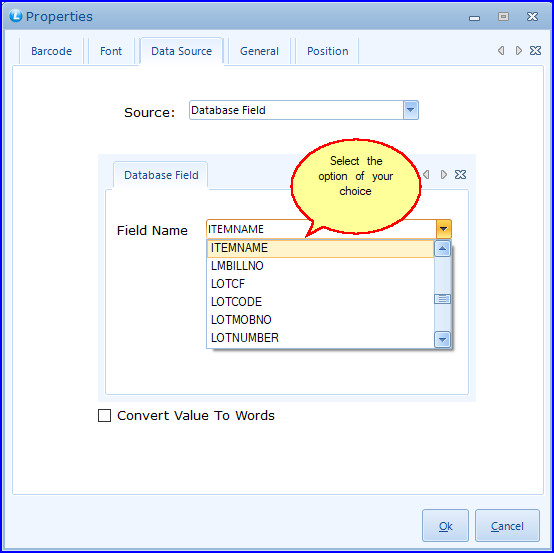

bullet01 In Data Source we select the database field to be shown in the barcode as per users requirement.





LogicAFS-444



FIG 3. BARCODE PROPERTIES



Back To Top


Barcode



bullet01 Code Type: Users can select code type for e.g: ISBN, Ean-13, Ean-8, Code 128 etc. as per the requirement.



bullet01 EAN-13: EAN-13 is the main scheme used throughout Europe for retail article numbering. It is a numeric only coding scheme.



bullet01 EAN-8: EAN-8 is a smaller and shortened version of the EAN code etc.The number or numeric value usually tells you the number of values the barcode carries. Every type of business uses a certain code type.



bullet01 For example: Outside USA Ean-13 and Ean-8 is usually used for clothing, DVD, groceries etc.



bullet01 Code 128: Code 128 is a very high-density barcode symbology. It is used for alphanumeric or numeric-only barcodes. UCC/EAN-128) is a subset of Code 128 and is used extensively world wide in shipping and packaging industries as a product identification code for the container and pallet levels in the supply chain. The symbology was formerly defined as ISO/IEC  15417:2007.



bullet01 ISBN: ISBN code type is globally used for books.



bullet01 You can select to show text on barcode or remove the tick in this option as per your need. There are other details you can modify or change in your barcode like its colour, size, length, height etc.

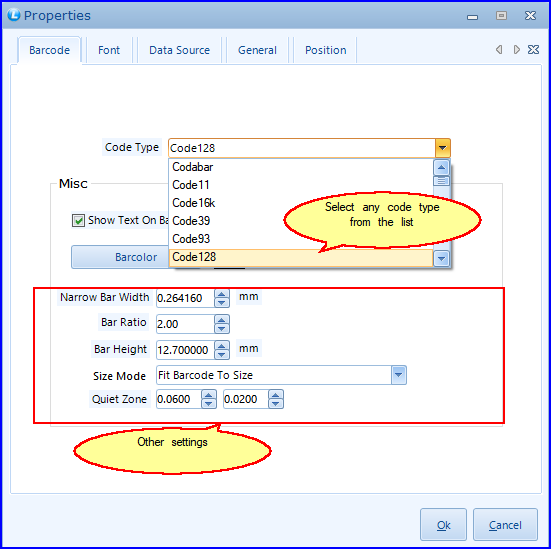

LogicAFS-442



FIG 4. BARCODE PROPERTIES

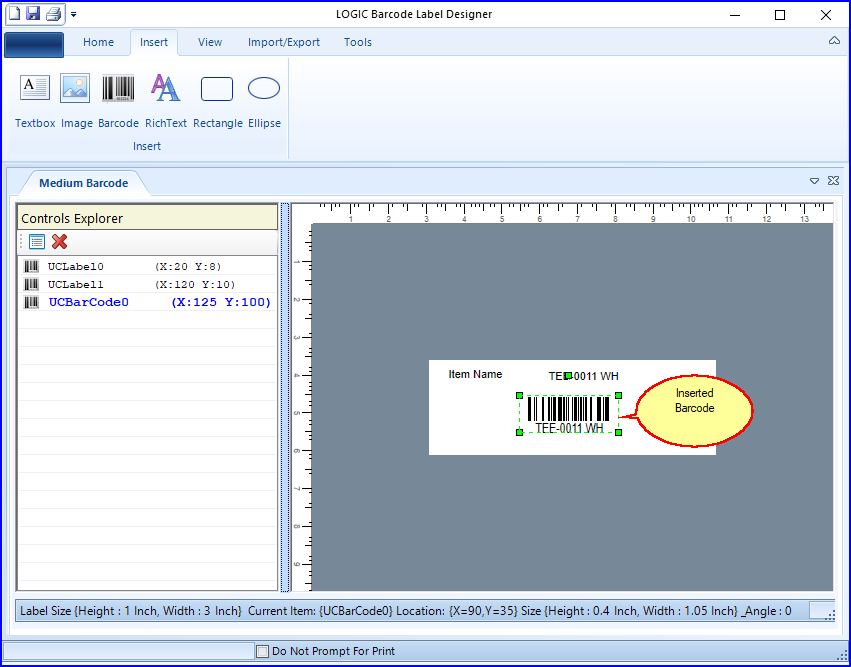

bullet01 On deciding the properties for the Barcode it will be on display as shown in the figure below.



LogicAFS-443



FIG 5. BARCODE DESIGNER
