Company Creation

Previous pageReturn to chapter overviewNext page



bullet01 Creating a Company involves providing basic information about the company whose data is to be maintained in Logic Apparel.



bullet01 The first step to get started in Logic Apparel is to Create a Company, The initials screen appears as shown below.



bullet01 Enter User Details : Select the user name by clicking Shift+F3 from the list and then press Enter.

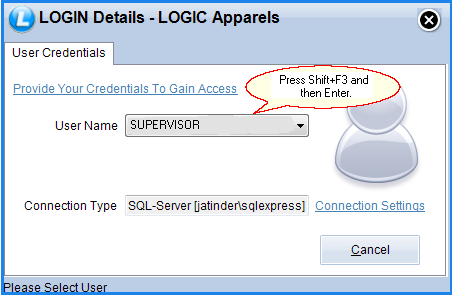

    SUP

                                           Fig 1. Login Details






bullet01 Enter the password and click on OK  button.



    LOGII

                                 Fig 2. Login Details






bullet01 Select Manage Companies.



bullet01 Double click on Logic Apparel icon> Login Details> Select Manage Companies.

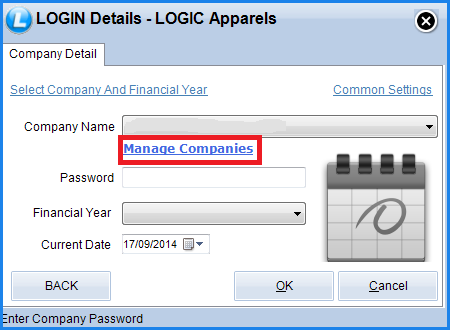

    new login 1

                                           Fig 3. Company Detail




bullet01 To create a new company, click on highlighted option Create New.

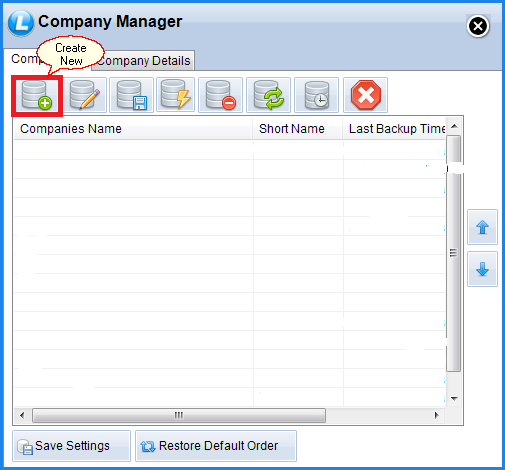

    comp creation 2

                                                 Fig 4. Company Manager




Fill all the required details in the screen given bellow:



bullet01 Company Name: Enter the name of the company whose data is to be maintained.



bullet01 Address 1&2: Enter the address of the company.



bullet01 Country: You can select the appropriate country from the predefined list.



bullet01 State: You can select the appropriate state from the predefined list.



bullet01 City: You can select the appropriate city from the predefined list.



bullet01 PIN No: Specify the PIN No (Postal Index Number) of the specified address.



bullet01 Telephone: Enter the Telephone number.



bullet01 Mobile No: Enter the mobile number of the company.



bullet01 E-mail: Enter the E-mail address that will be used to e-mail documents, reports and data from Logic Apparel.



bullet01 Password: Enter the password which you will use at the time of login.



bullet01 Company Short Name: Enter the short name of the company.



bullet01 Current financial Year: Enter the current financial year, for ex- 01/04/2014 to 31/03/2015.

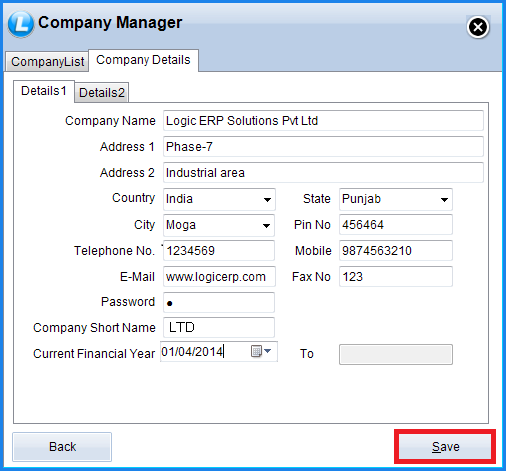

    comp creation 3

                                                       Fig 5. Details1_Company Manager




Fill all the required details in the screen given bellow:



bullet01 Cst No: Enter the Central Sales Tax No issued to the company.



bullet01 Cst Date: Enter the Cst  date of the company.



bullet01 Lst No: Enter the Local Sales Tax No issued ton the company.



bullet01 Lst Date: Enter the Lst Date of the company.



bullet01 Tin No: Enter the Taxpayer Identification No issued to the company.



bullet01 Backup Path: If you want to take backup or the data.

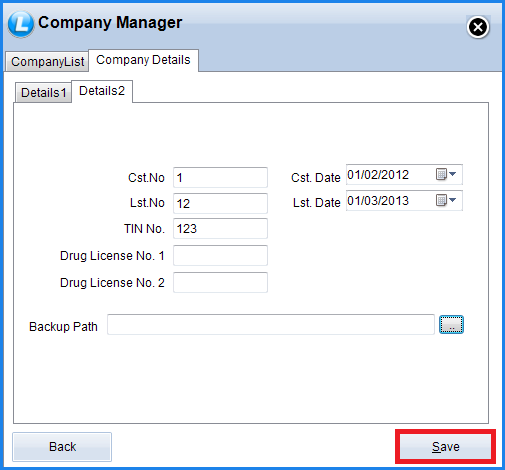

    comp creation 4

                                                    Fig 6. Details 2_Company Manager






bullet01  After saving, company will be visible in Company Manager.



bullet01  If you want to do any changes in the company like modify, delete etc.



1. Create New: Select if you want to create a new company.



2. Modify: This option allows you to alter information about the existing company, you can modify any information at any time that is set while creating a company.



3. Take Backup: Select if you want to take the backup in the CD.



4. Restore: Select if you want to restore the backup.



5. Delete Checked: This option allows you to delete an existing company.



6. Run Database Patches: Select if you want to run the database patches for the selected company.



7. Manage Backup Plans: Select if you want to set the timer for the automatic backup.



8. Close: Select if you want to close the company manager.

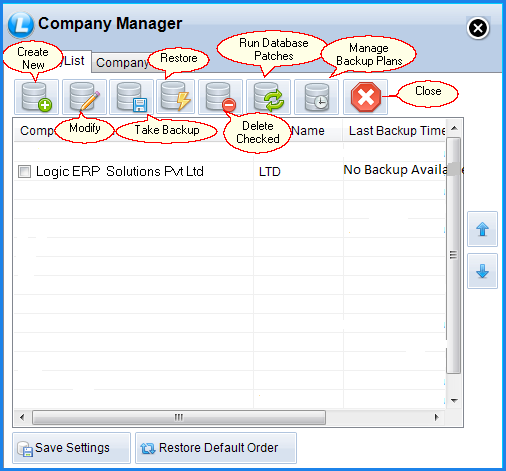

    comp creation 5

                                                             Fig 7. Company Manager
