Installing LOGIC for single user |

|
|
Installing LOGIC for single user |
|
Software Requirement before the installation of Logic software:
Dot Net Frame Work-
Dot Net Frame Work 3.5
Dot Net Frame Work 4.0
You can install Logic Apparel for single user by following method:
Double click on the Logic Software Installer on the CD.
The below given window will appear and choose the machine type.
SERVER: For creating a server.
Fig 1. Logic Software Installer
Select Logic Apparel to install Logic Apparel software on your computer.
Click Next to continue with the installation.
Fig 2. Logic Software Installer
The downloading screen is displayed as shown.
Wait for the complete download and then proceed to the next step.
Fig 3. Logic Software Installer

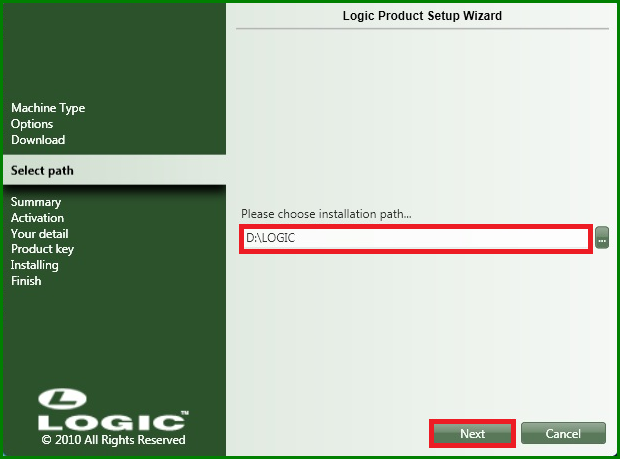

First make the folder named as Logic in any drive of the computer with required space.
Then choose the installation path by clicking on the browse.
In browse for folder, select the drive where you made the Logic folder.
Fig 4. Browse For Folder
Click Next to continue with the installation.
Fig 5. Logic Software Installer
Click Next to continue with the installation.
Fig 6. Logic Software Installer
Click on New User to fill the required details of a new user.
Fig 7. Logic Software Installer
Following form will appear of Logic Online Services.
Fill all the necessary details in the form.
After filling, click on Register.
Fig 8. Logic Online services
Enter the Product Key.
Click Next to continue with the installation.
Fig 9. Logic Software Installer
First click on Install Activation Service.
Then Click on Next to continue with the installation.
Fig 10. Logic Software Installer
Once the installation process is completed, the Logic Software Installer displays the messages ' Setup has successfully installed '
Fig 11. Logic Software Installer
In the installer screen, click Finish to complete Logic Apparel Setup.
To start the Logic Apparel software, double click the Logic Apparel icon on the desktop.
