bullet01 Issue Assigned is next phase of the production Process. In this process, you give raw material to the stitching team. Follow the steps mentioned below:



Issue Assigned Raw Material: Main Menu> Production> Raw Material Processing> Issue Assigned Raw Material - Internal

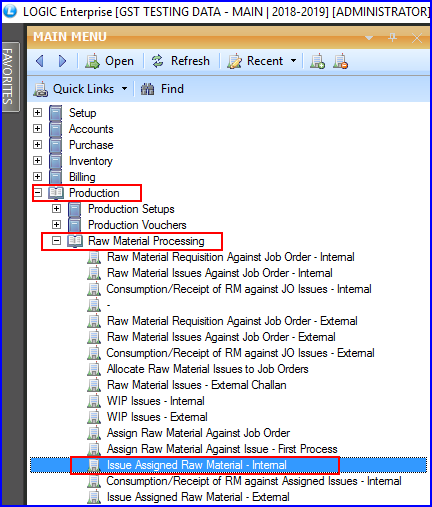

toggle icon minus 17 Main Menu



Issue Assigned Raw Material-Internal



Fig 1. Main Menu




bullet01 Issue Assigned Raw Material window will appear on your screen. Enter details including configuration for Issue Register, Issued to, Issued Date and Issued Time & Document number. Click on 'Select Job Order'. A window will appear to search Job Order first process. See the window below:

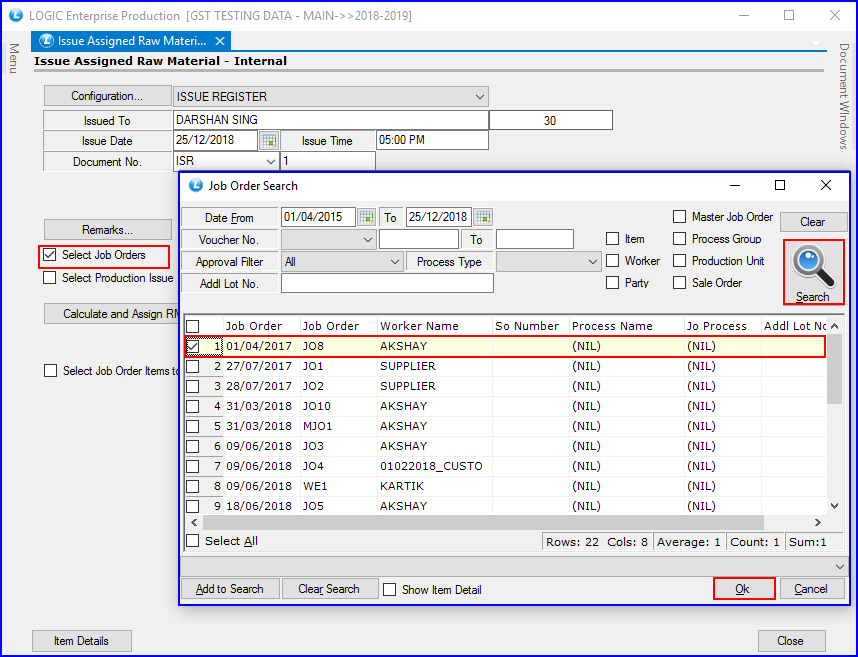

Issue Assigned Raw Material-Internal-1



Fig 2. Select Job Orders



bullet01 Click on 'Select Production Issue'. Then, issue register Search window will appear on your screen. Select production issue by clicking on Search button. Click on Ok after selecting it.

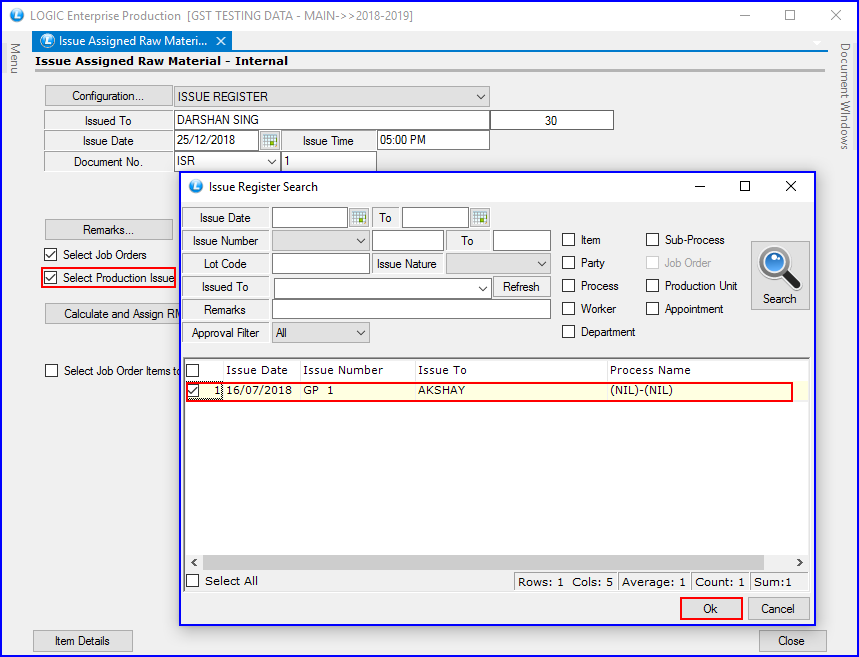

Issue Assigned Raw Material-Internal-2



Fig 3. Select Production Issues



bullet01 If you want to Calculate the estimated consumption of the raw material, Click on Calculate and Assign RM. 'Calculate and Retrieve Raw Material against JO/ Production Issue' window will appear at your screen. Click on Refresh button. Job order and Finished material will appear. Now, Select All will select the Job order and color will show the current status of the Raw Material. For example: In the window below S.No has turned Green as; Raw Material is Present. Click on Save button to Save your settings.



stitching raw material asigned 2



Fig 4. Calculate and Retrieve Raw Material



bullet01 Now, click on Select Job Order Items to Issue from the main Issue Assigned Raw Material window. 'Select RM assigned against JO items to issue' will appear on your screen. Select the Raw Material and Click on 'OK' as shown below:

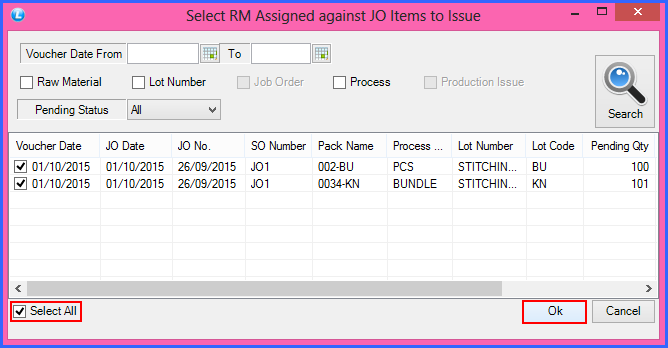

stitching raw material asigned 3



Fig 5. Select RM Assigned



bullet01 As you Press Ok button, a new window will appear with final details of Issue assigned Raw Material. Click on 'Save' button.

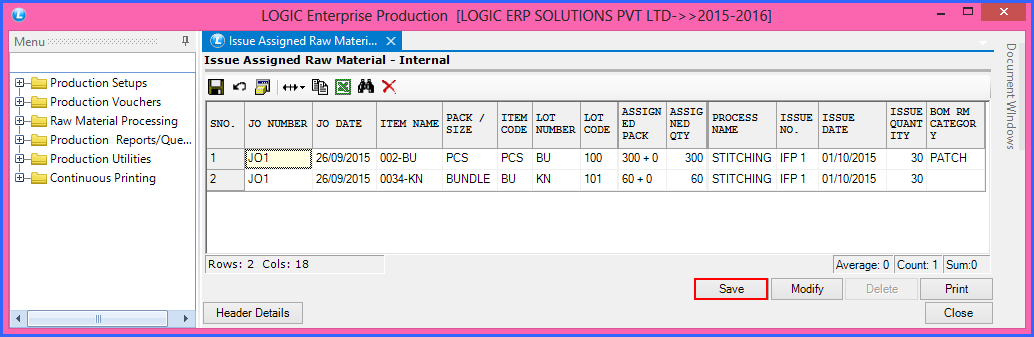

stitching raw material asigned 4.zoom65



Fig 6. Issue Assigned Raw Material
