Journal Voucher Configuration

Previous pageReturn to chapter overviewNext page
Show/Hide Hidden Text



bullet01 The defaults for the Sale/Purchase Journal, Journal Voucher and Credit/Debit Note can be set by using the Journal Voucher Configuration. The configuration lets the user set some defaults like mentioning the columns that should be displayed, the header and footer for the printing etc.



bullet01 Journal Voucher Configuration: Main Menu > Configuration > Journal Voucher Configuration.



Toggle Icon Minus 17Main Menu



Journal Voucher Configuration

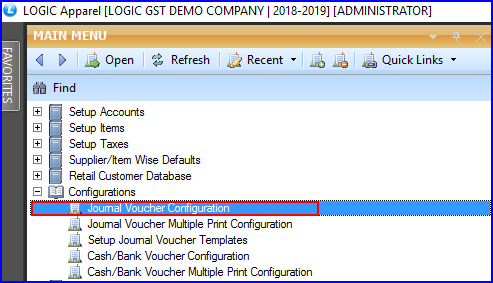

Fig 1. Main Menu






Contents



bullet-arrow2   Print Options



bullet-arrow2   Other Options



bullet-arrow2   Voucher Numbering






Print Options



bullet01 Enter the name of the Configuration in the select box and then set the defaults. If the configuration already exist then select the name of the configuration from the select box and set the defaults for that configuration.



LogicAFS-158

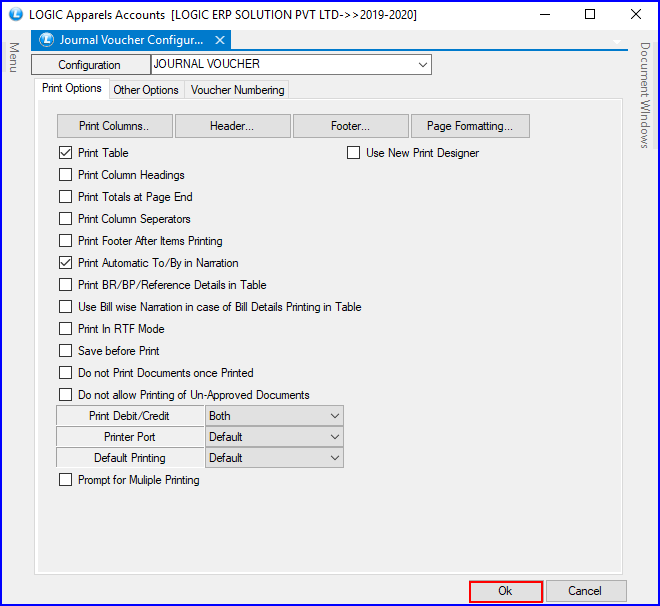

Fig 2. Journal Voucher Configuration (Print Options)



bullet01 Print Columns: This option allows the user to choose the columns that are required in the printed format of the Journals. For this the user needs to click on Print Columns button or Press Alt+P. The Required  Column form will open up and will display the list of the columns that can be printed.



bullet01 Header- The user can specify what should appear at the top of the Journal. For this click on Header button or Press Alt+H. The Header form will open up which will allow the user to select what should appear in header from the Fields List. The user can also specify the default length for the fields selected.



bullet01 Footer- The user can specify what should appear at the bottom of the Journal. For this click on Footer button or Press Alt+F. The Footer form will open up which will allow the user to select what should appear in footer from the Fields List. The user can also specify the default length for the fields selected.



bullet01 Page Formatting- The user can set the format of the page for printing i.e. the number of lines that should be printed per page, bottom and top margins, lines in header and footer etc. For this click on Page Formatting button or Press Alt+P. The Page Formatting Form will open up.



bullet01 Print Table- In order to print the receipts with all its details the option Print Table should be checked otherwise nothing will be printed



bullet01 Print Automatic To/By in Narration- A Narration is a short explanation of the nature of the transaction which should always be given before the Journal Entry is closed.The user can choose to add the clause "TO" and "BY" automatically to the narration formula so that it can be known that what exactly was the nature of transaction.For this check the option Print Automatic To/By In Narration.



Back To Top




Other Options



bullet01 Column Locks- Depending upon the user requirements some columns can be locked. The columns which will be locked will not appear in the respective Journal forms and the user will not have to enter their values. For this click on Column Locks button or Press Alt+L. The Column Locks form will open up. Select the fields which should not appear in the respective forms and click on Save button or Press Alt+S to save the settings.



bullet01 Narration Formula- The user can specify the values of which columns should define the narration. For this click on Narration Formula or Press Alt+N. The Narration form will open up which will allow the user to select what should make up the Narration from the Fields List. The user can also specify the default length for the fields selected.



bullet01 Default Day Book- The user can specify that the configuration which is been created should apply to which Day Book. The following values can be set :-
SL -> SALE, SR -> Sale Return, PU -> Purchase, PR -> Purchase Return, CN -> Credit Note, DN -> Debit Note, JV - > Journal.



bullet01 Bill No As- The format for the Bill No. can be set.It could either be the combination of Document Series+Number or just the Document Number.



bullet01 Move Voucher Date To Bill Date- The user can set the Bill Date equal to Voucher Date.For this the option Move Voucher Date To Bill Date has to be checked.



bullet01 Create Due Date from Payment Terms- The Due Date can be set by adding the No. of Days (the No. Of Days that are defined for a account in Payment Terms using the Setup New Account form)to the Date.For this the option Create Due Date from Payment Terms has to be checked.



bullet01 Carry Forward Debit/Credit- While entering a voucher for a particular party if the user wants that the same Debit/Credit should apply for the subsequent items then this option needs to be checked in the configuration.



bullet01 Pick Agent From Agent+Party Linking- This option will allow the selection of the agent according to the Salesman + Party Linking form.



bullet01 Profit Center Selection Mandatory- This option will allow user to mandatory select profit center in the voucher.



bullet01 Move Bill Date To Date Of Occurrence :


LogicAFS-159

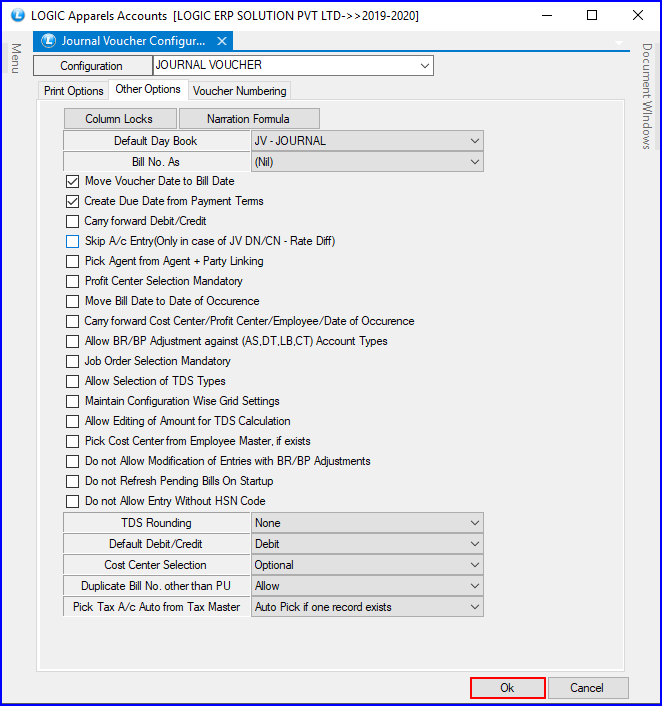

Fig 3. Journal Voucher Configuration (Other Options)



Back To Top




Voucher Numbering



LogicAFS-160

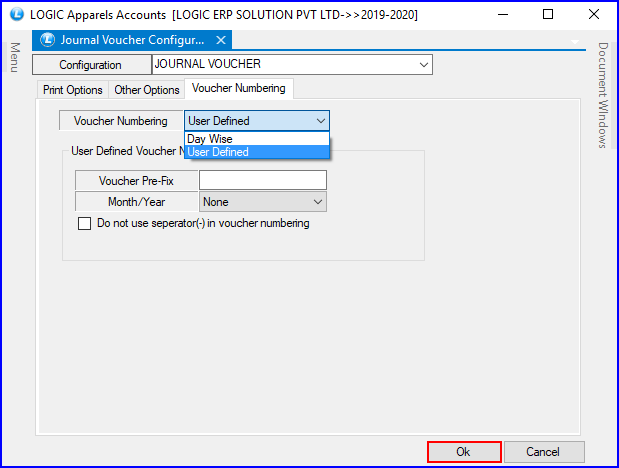

Fig 4. Journal Voucher Configuration (Voucher Numbering)



bullet01 Voucher Numbering- This option will allow user to set the voucher number. In User Define voucher number user can set voucher number according to his choice and can set Prefix and format of month and year.



bullet01 After all the settings have been made for the configuration Click on OK button or Press Alt+O to save the settings for the configuration.



Back To Top
