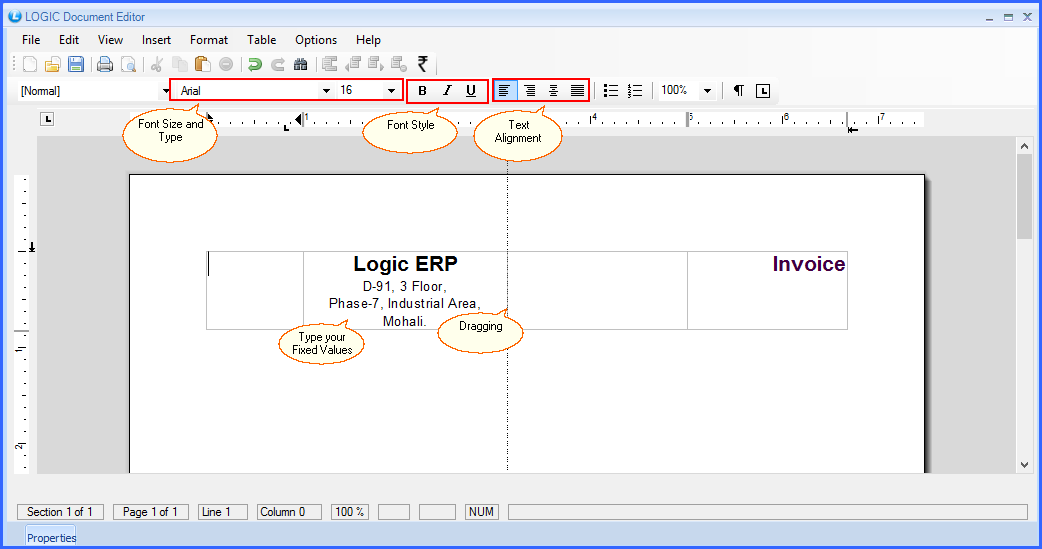

Fig 1.Inserting a New Table

Inserting a New Table:

Once you know the basic idea of layout, you can start with the designing of your bill. Click on the Table> Insert > Table.

Fig 2.Select Row & Column

Select Row & Columns for Table:

Select Rows and Column of the first type of layout i.e. Header Layout. You can select it according to the data and Fields you want to add in your Bill. See the windows below:

                    Fig 3.Enter Data

Entering Data in Bill:

A table will be created on your document editor. You can start with entering the details that you want to be included in your header of the bill. You may adjust the table according to the length of the field by dragging row or column. See the window below:

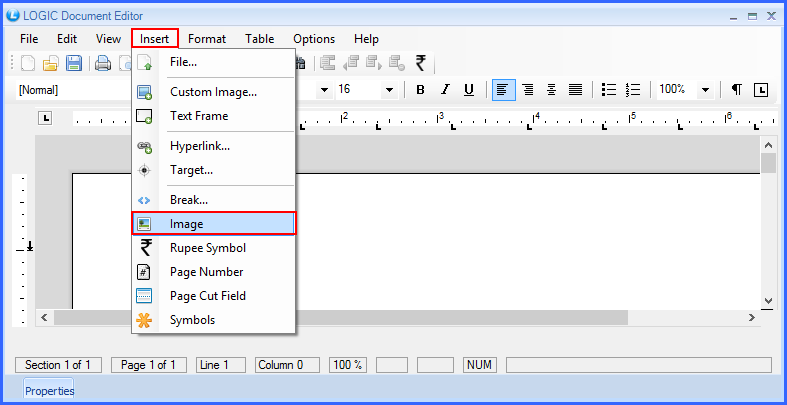

                             Fig 4.Insert Image

Inserting Image:

A table will be created. It may contain your company's  Name, Address, Type of Bill etc.It you want to insert Logo , click on Insert > Image.

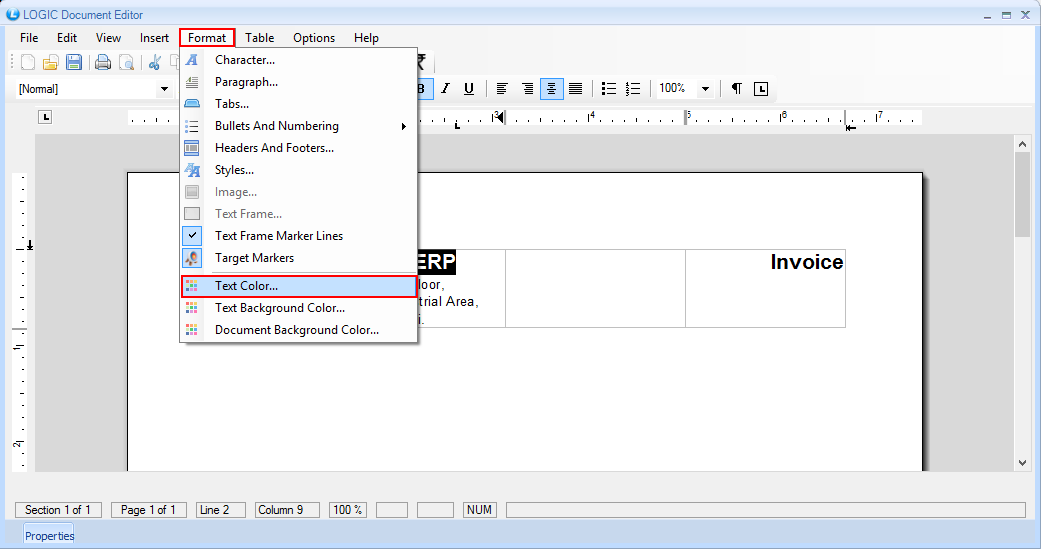

                       Fig 5.Text Color

Giving Text Color:

You may adjust the table according to the length of the field by dragging row or column. You can change the Font Color from Format> Text Color.

You can also add a Table in Table by following same process to add sub fields. Complete the Layout of your Header Part. It may contain two tables as well.

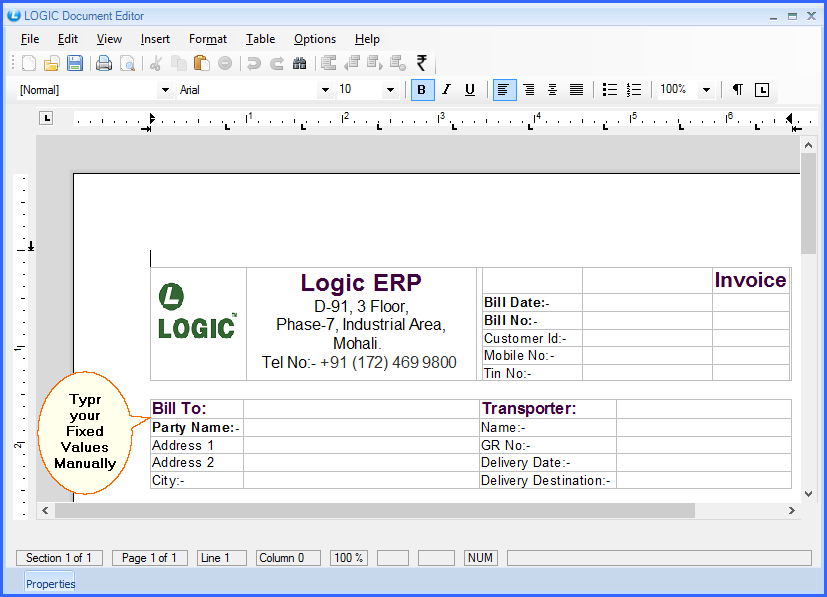

             Fig 6.Header Fields

Header Fields:

You have to enter the fields Manually that you want to include in your sale Bill. These will be your Fixed Values.

You need to select the Value from Properties for every field that you've added in the Sale Bill. This is required to retrieve the data automatically from the database. Click on the Properties button at the  Extreme Left of the Logic Document Editor.

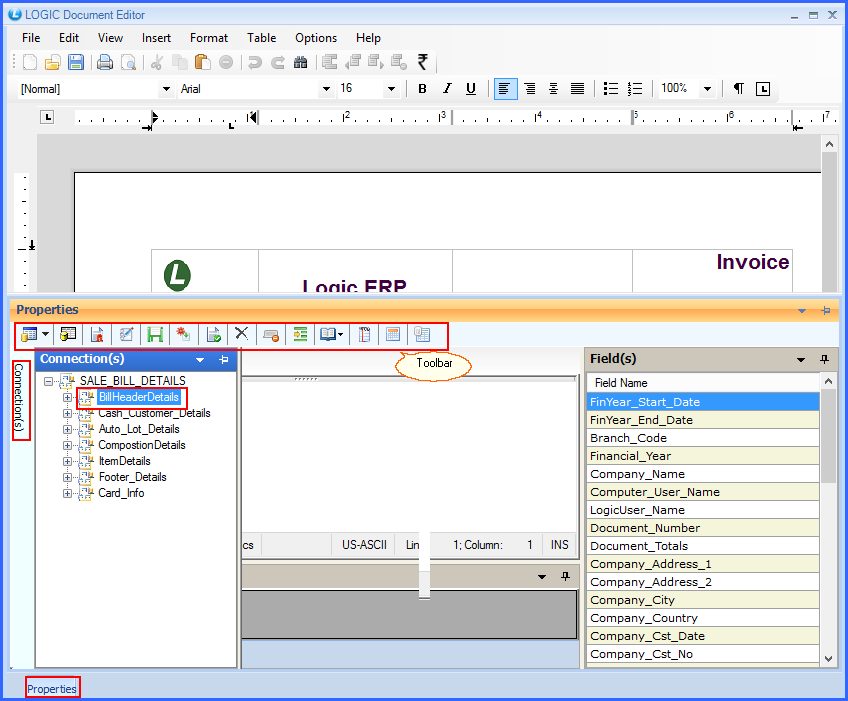

             Fig 7.Header Properties

Opening Header Properties:

As you Click on Properties, a window will open at the bottom of your screen. Click on Connections and then on Bill Header Details. See the Window:

You can See your Design by clicking on the Print Preview Option on Toolbar.
