bullet01 Production Unit is an important factor in the successful production of any business. There could be two types of production units. These are as follows:



1) In-house Production Unit- where production or any part of production takes place in the company.

2) Out- House Production Unit- where some external resource or other company is used to complete the production or any process of production.



bullet01 In order to setup Production unit in LOGIC ERP Software, follows the steps mentioned below:



Setup Production Unit > Main Menu > Production > Production Setups > Setup Production Unit



Toggle Icon Minus 17 Main Menu



setup production unit

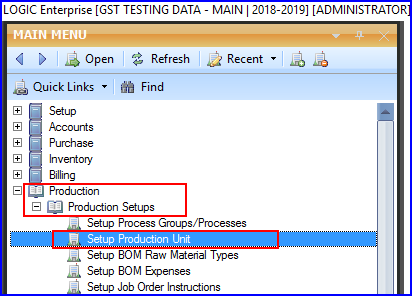

Fig 1. Main Menu






Contents



bullet-arrow2 Create



bullet-arrow2 Set the Order






Create



To create the production unit, follow the steps mentioned below:



1. Enter the production unit name and hit enter.The production unit name should be unique.It is compulsory to enter the production unit name.

2. Enter the unit short name and press enter.The unit short name should be unique.It is compulsory to enter the production unit short name.

3. Click the Save button or press Alt+S.

4. Click Close button or press Alt+C in order to exit from the window.



Setup Production Unit-1

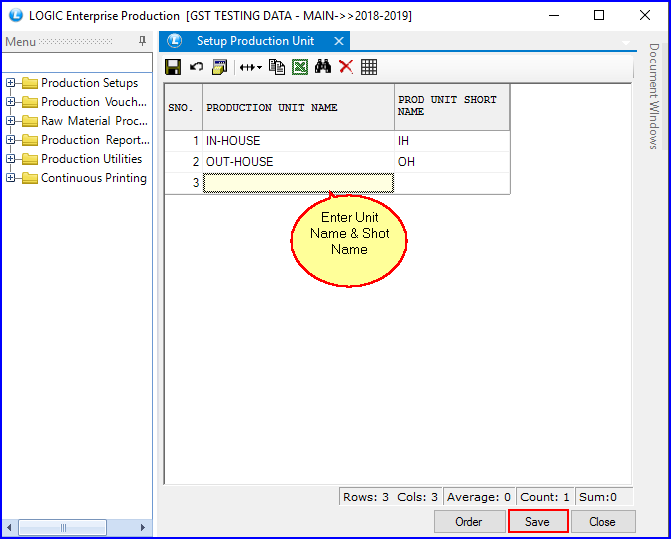

Fig 2. Create Production Unit



notes

To save the data entered by the user, user have to press enter button and the cursor should be on next line in the grid.



Back To Top




Set the Order



If you want to set the order of production unit, follow the steps mentioned below:



1) Click on order button.

2) Set Order window will appear on your screen.

3) Select the field and use arrows to move up or down the Production units.

4) Or, Click on Set in Alphabetical Order to Set it in Alphabetical order.

5) Click on Save button to set order of production units.



Setup Production Unit-2

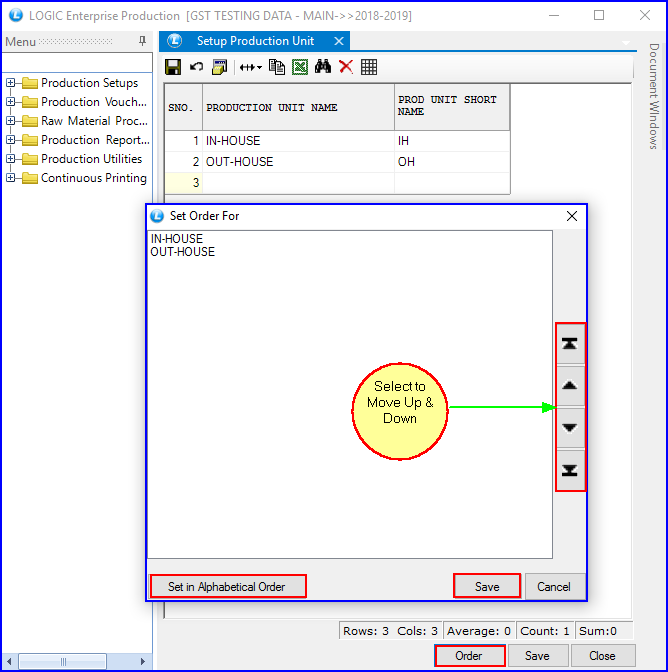

Fig 3. Set Order of Production Unit
