Other Options

 Previous pageReturn to chapter overviewNext page
Show/Hide Hidden Text

Once you have completed the designing part, you need few more options. These options may help you to copy your configuration, Export or Import your Data and providing different access to different users. You can use these options in Logic ERP software through following ways.



How to Copy Configuration?



It is very simple to copy a Configuration from one Configuration to another. See how to copy Configuration.



1) Click on Configuration > Copy Configuration.

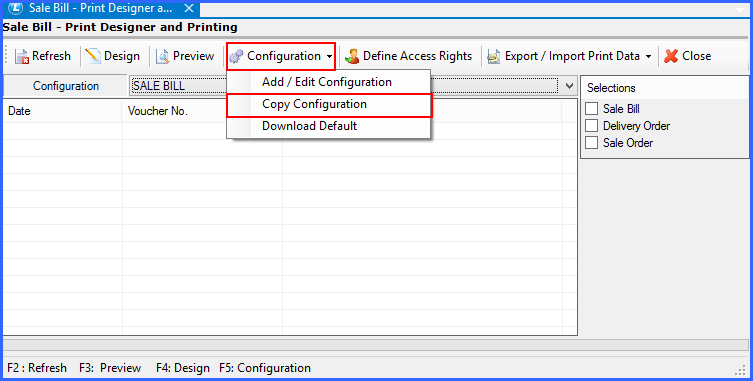

config print 1.zoom50



Fig 1. Configuration



2) A window will appear on your screen. You can Copy Configuration through this option as well. It also allows you to Delete, Rename, Export or Import Configuration. Select the Configuration You want to Copy From and the configuration you want to Configuration to. Following window will appear:

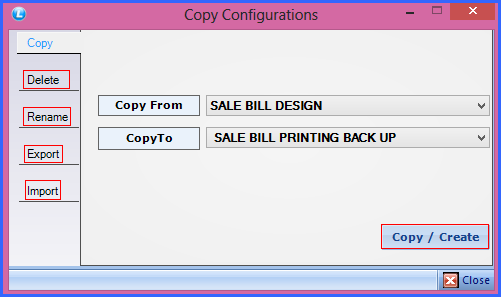

copy config.zoom50



Fig 2. Copy Configuration



Back To Top



How to Define Access Rights?



If you want to assign different rights for different users, click on Define Access Rights from Toolbar and follow the steps mentioned below:



Add a new Category by clicking on the '+' button. 'User Access Category' window will appear on your screen. Give a new name to this category. See the window below:

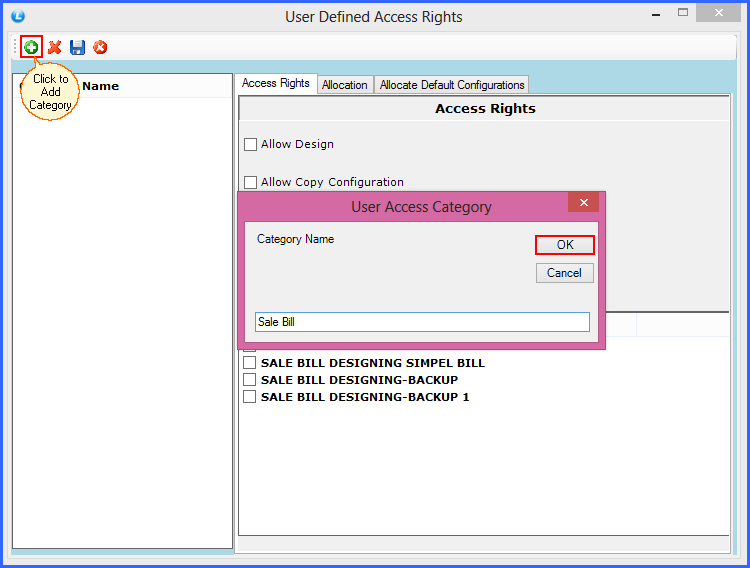

define access right 1.zoom25



Fig 3. User Access Category



bullet01 Step 1- Access Rights:

You can define the access rights and select the configuration(s) from this option.

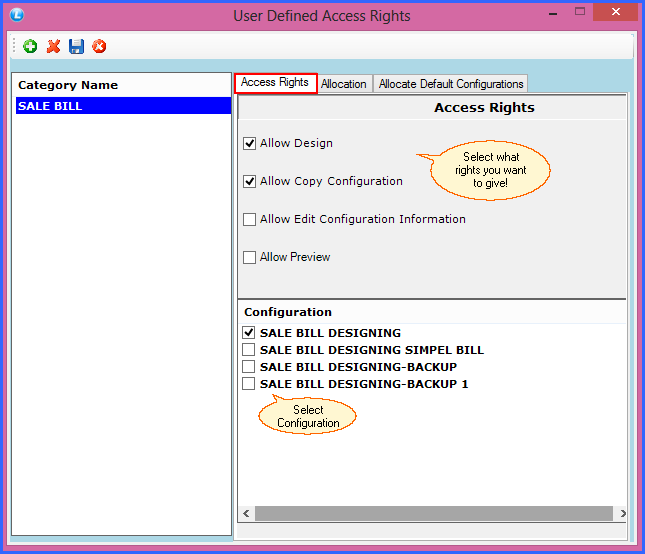

access rights.zoom25



Fig 4. Access Rights



bullet01 Step 2- Allocation:

Click on Allocation Tab and select the user whom you want to assign Right. Click on Allocate.

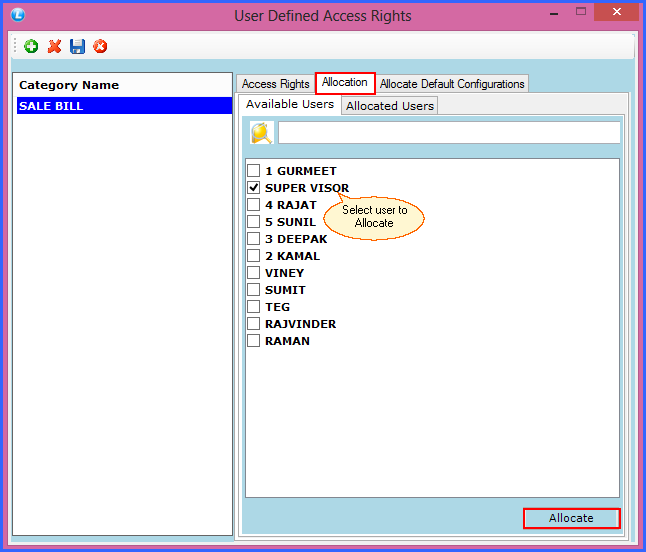

allocation.zoom25



Fig 5. Allocations



bullet01 Step 3- Allocate Default Configuration:

You have to add Bill series and Configuration name to Add Default Configuration. Once you've selected the config, select Save.

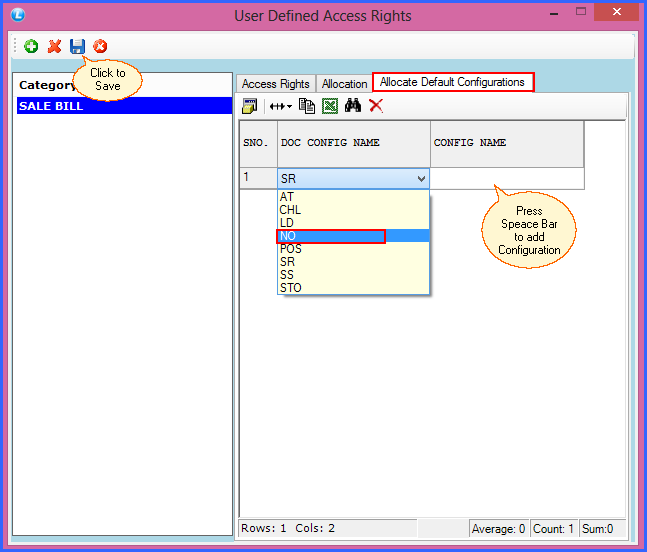

allocate default configuration.zoom25



Fig 6. Allocate Default Configuration



Back To Top



How to Import or Export Data?



Export Data To File: You can create a back up file of your sale bill (that you have designed) and can export it to a File. Save it in a drive and keep it secure.



Import Data from File: This option allows you to transfer data from your bill. You can import data from your computer with this option.

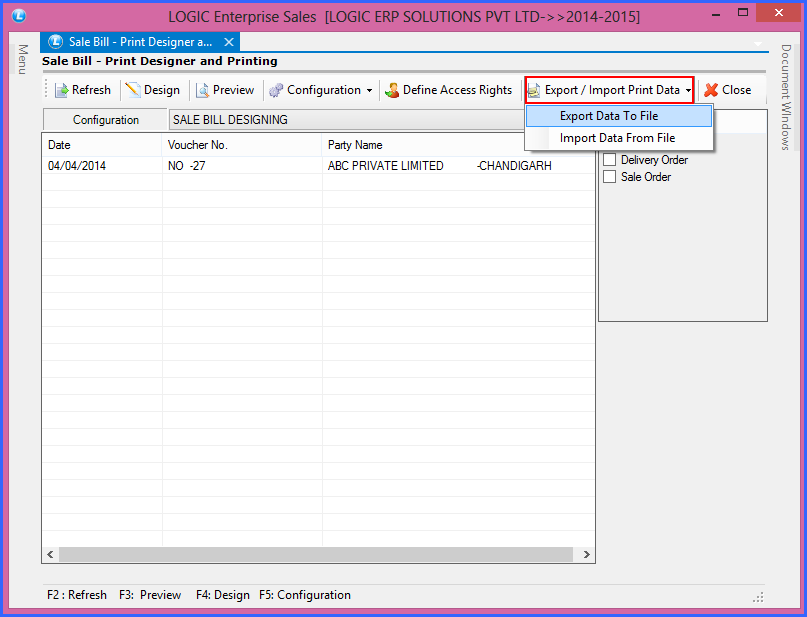

export print data.zoom25



Fig 7. Import or Export Data



Back To Top
