Footer

 Previous pageReturn to chapter overviewNext page
Show/Hide Hidden Text

bullet01 Footer is included at the bottom of the Sale Bill Design. You can include different field in it like: C.D, T.D, Total Amount etc.





insert table.zoom30

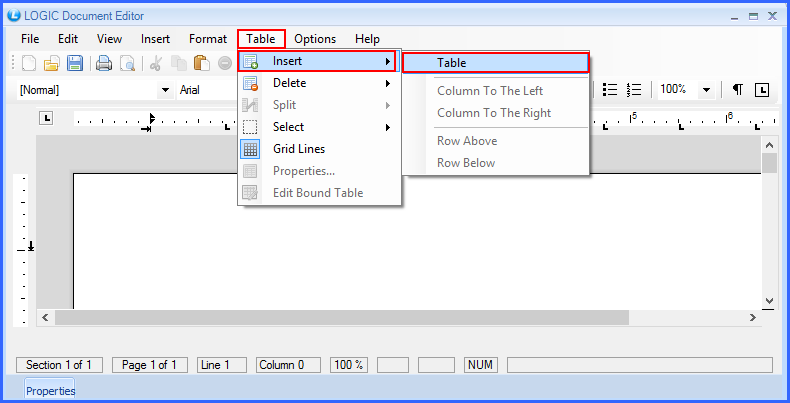

Fig 1. Insert New Table



Inserting a New Table:



You can start with the designing of Footer of your bill. Click on the Table> Insert > Table.



insert table 1.zoom70



Fig 2. Select Row & Column



Select Row & Columns for Table:



Select Rows and Column of the first type of layout i.e. Header Layout. You can select it according to the data and Fields you want to add in your Bill. See the windows below:

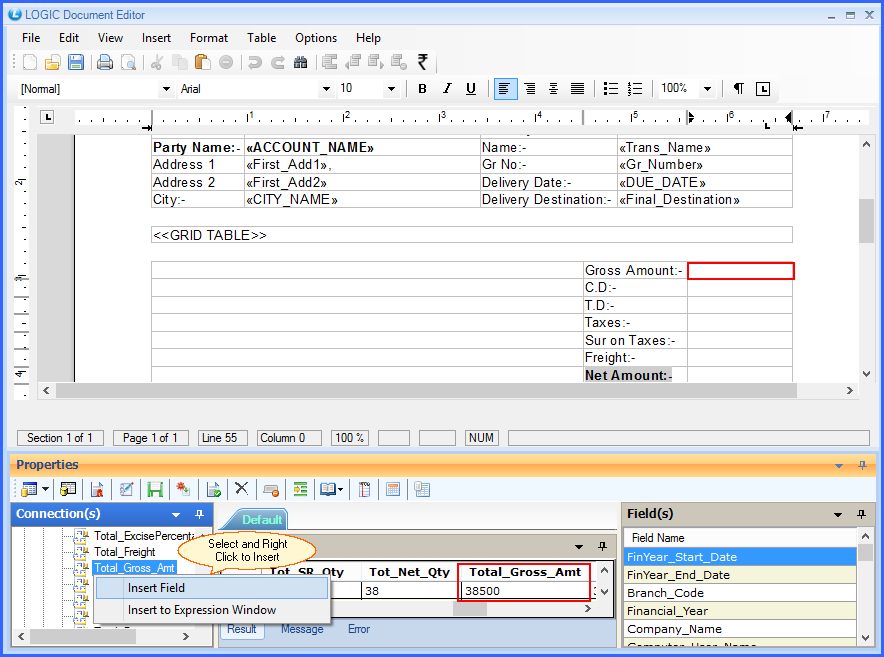

bullet01 Add Fields that you want to insert in your Footer. Select the expression for each Field from Properties> Collection(s)> Footer_Details and add it in your Tables. See the window:



footer insert field.zoom25



Fig 3. Add Fields

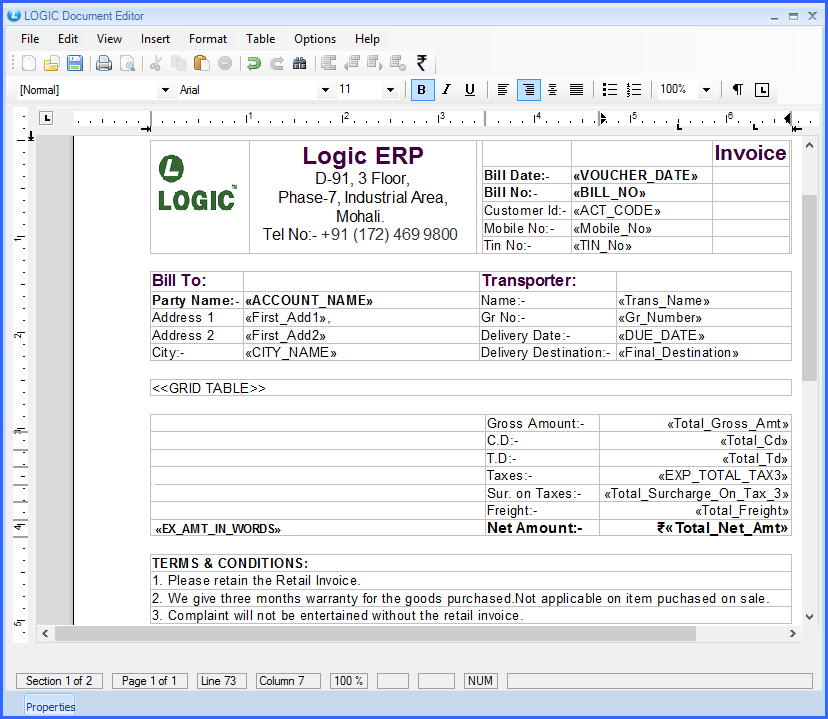

bullet01 Similarly, insert the fields for all fields. You can also include a field for Terms & Conditions as well. Designing part may look as follows:



sale bill design.zoom25



Fig 4. Add Fields



notes

You can See your Design by clicking on the Print Preview Option on Toolbar.



Back To Top

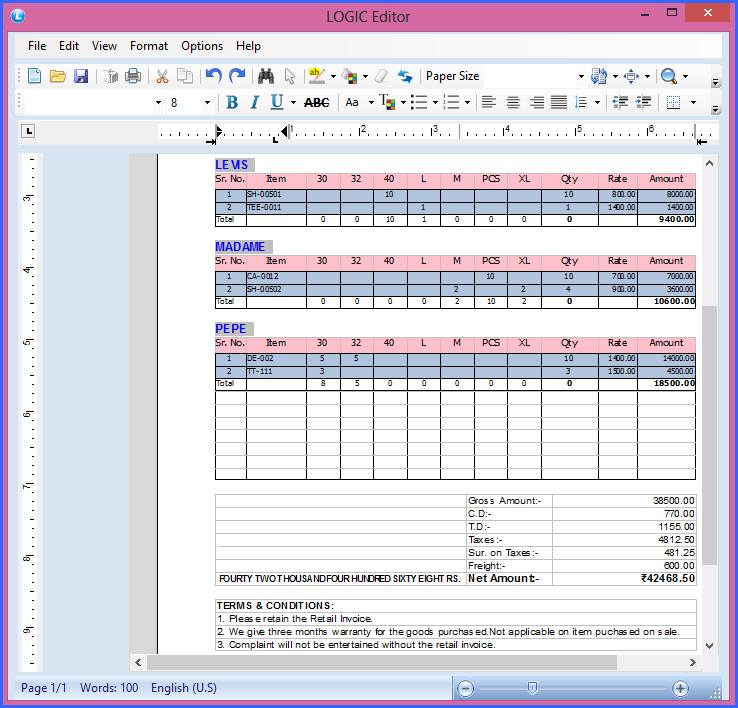

bullet01 Footer Preview: After making all the changes, you Footer may look as follows:



sale bill design preview.zoom50



Fig 5. Footer Preview



Back To Top
